My Proxmark3 RDV40.1 finally arrived yesterday and I have been busy investigating this RFID reader/writer/copier bought off Amazon. It came bundled with soem blue plastic RFID tags (125khz and 13.56Mhz) and some 125khz RFID cards. Before the Proxmark3 came I played around with reading and writing some of the included cards but had no way to really verify anything.
Finally I got a hold of a Proxmark3 and it took the better part of yesterday to get it up and going. This was mostly getting the built from source software working then programming the firmware to the Proxmark3 hardware.
Searching for hours on end about these mysterious tags that I could program with the Chinese copier, read with the Proxmark3, but not program with the Proxmark3 was quite frustrating. One thing to mention about the strategy here, this works IF you have own or have access to the programmer that programmed the tags.
From internet searching (picture searches are useful) for these blue tags I ran across some possible candidates for them. I found mentions of TK4100, EM4100, EM4305, T5577 and EM4305
While looking around these two posts provided a wealth of information of where to get started in figuring out the password how how to program the blue tags.
http://www.proxmark.org/forum/viewtopic.php?id=6388
http://www.proxmark.org/forum/viewtopic.php?id=6245
I few lessons learned, these blue 125khz tags do not have the best of antennas in them, even if they can be read, writing data is a whole different story. These tags are powered from the magnetic field generated by the reader/writer and if not enough power can be drawn from the electromagnetic field the writes will fail. They need to be positioned in the “sweet spot” of the Proxmark3 to be written to correctly, or attach an antenna with higher gain.
This is the proxmark3 client source that I am using, commands will be slightly different with a different version.
https://github.com/RfidResearchGroup/proxmark3
After some investigation it is not uncommon for these copiers from China to put passwords on the tags they copy. Once the tag has a password it can not be reprogrammed without that password. Good thing for us that this data is not encrypted and we can just sniff it with the Proxmark3 and read off the password.
The Proxmark3 client has a brute force script that tries common passwords, but lets go through the sniffing method.
First we are going to read the tag and see what additional data is returned.
Startup the Proxmark3 software, this is the version output from what I am using for reference.
[=] Session log /Users/user/.proxmark3/logs/log_20210219.txt [+] loaded from JSON file /Users/user/.proxmark3/preferences.json [=] Using UART port /dev/tty.usbmodemiceman1 [=] Communicating with PM3 over USB-CDC ██████╗ ███╗ ███╗█████╗ ██╔══██╗████╗ ████║╚═══██╗ ██████╔╝██╔████╔██║ ████╔╝ ██╔═══╝ ██║╚██╔╝██║ ╚══██╗ ██║ ██║ ╚═╝ ██║█████╔╝ Iceman ☕ ╚═╝ ╚═╝ ╚═╝╚════╝ ❄️ bleeding edge https://github.com/rfidresearchgroup/proxmark3/ [ Proxmark3 RFID instrument ] [ CLIENT ] client: RRG/Iceman/master/v4.9237-3016-gf6bca6e3a 2021-02-06 18:19:42 compiled with Clang/LLVM Apple LLVM 12.0.0 (clang-1200.0.32.28) OS:OSX ARCH:x86_64 [ PROXMARK3 ] firmware.................. PM3RDV4 external flash............ present smartcard reader.......... present FPC USART for BT add-on... absent [ ARM ] bootrom: RRG/Iceman/master/release (git) os: RRG/Iceman/master/v4.9237-3016-gf6bca6e3a 2021-02-06 18:20:33 compiled with GCC 10.2.1 20201103 (release) [ FPGA ] LF image built for 2s30vq100 on 2020-07-08 at 23: 8: 7 HF image built for 2s30vq100 on 2020-07-08 at 23: 8:19 HF FeliCa image built for 2s30vq100 on 2020-07-08 at 23: 8:30 [ Hardware ] --= uC: AT91SAM7S512 Rev A --= Embedded Processor: ARM7TDMI --= Nonvolatile Program Memory Size: 512K bytes, Used: 310789 bytes (59%) Free: 213499 bytes (41%) --= Second Nonvolatile Program Memory Size: None --= Internal SRAM Size: 64K bytes --= Architecture Identifier: AT91SAM7Sxx Series --= Nonvolatile Program Memory Type: Embedded Flash Memory
I previously copied an HID 125khz card using the copier from China, and now I am going to read that card and attempt to erase/write it. First of all here is the output from the LF search.
[usb] pm3 --> lf search [=] NOTE: some demods output possible binary [=] if it finds something that looks like a tag [=] False Positives ARE possible [=] [=] Checking for known tags... [=] [+] [H10301] - HID H10301 26-bit; FC: 118 CN: 16038 parity: valid [=] raw: 000000000000002006ec7d4c [+] Valid HID Prox ID found! [+] Chipset detection: T55xx [?] Hint: try `lf t55xx` commands [usb] pm3 -->
We notice it detected a T55xx chip, which gives us a hint of what kind of chip is in this card, so lets try to dump the card.
[usb] pm3 --> lf t55xx dump [+] Reading Page 0: [+] blk | hex data | binary | ascii [+] ----+----------+----------------------------------+------- [+] 00 | 80000000 | .0000000000000000000000000000000 | .... [+] 01 | 80000000 | .0000000000000000000000000000000 | .... [+] 02 | 80000000 | .0000000000000000000000000000000 | .... [+] 03 | 80000000 | .0000000000000000000000000000000 | .... [+] 04 | 80000000 | .0000000000000000000000000000000 | .... [+] 05 | 80000000 | .0000000000000000000000000000000 | .... [+] 06 | 80000000 | .0000000000000000000000000000000 | .... [+] 07 | 80000000 | .0000000000000000000000000000000 | .... [+] Reading Page 1: [+] blk | hex data | binary | ascii [+] ----+----------+----------------------------------+------- [+] 00 | 80000000 | .0000000000000000000000000000000 | .... [+] 01 | 80000000 | .0000000000000000000000000000000 | .... [+] 02 | 80000000 | .0000000000000000000000000000000 | .... [+] 03 | 80000000 | .0000000000000000000000000000000 | .... [+] saved to json file lf-t55xx-80000000-80000000-80000000-80000000-80000000-80000000-80000000-dump.json [+] saved 12 blocks to text file lf-t55xx-80000000-80000000-80000000-80000000-80000000-80000000-80000000-dump.eml [+] saved 48 bytes to binary file lf-t55xx-80000000-80000000-80000000-80000000-80000000-80000000-80000000-dump.bin [usb] pm3 -->
We aren’t getting any data from the chip but retrying the LF search command we know there is data on it. We won’t be able to dump the chip if there is a password on it. Let’s try to figure out what password the reader put on the tag. To do this we can capture the data being sent from the Chinese copier. Here is how to set it up and do the capture.
[usb] pm3 --> lf config --trig 64 --dec 2 --bps 64 [#] LF Sampling config [#] [q] divisor.............95 ( 125.00 kHz ) [#] [b] bits per sample.....8 [#] [d] decimation..........2 [#] [a] averaging...........No [#] [t] trigger threshold...64 [#] [s] samples to skip.....0 [#] LF Sampling Stack [#] Max stack usage.........4232 / 8480 bytes [usb] pm3 --> lf snif

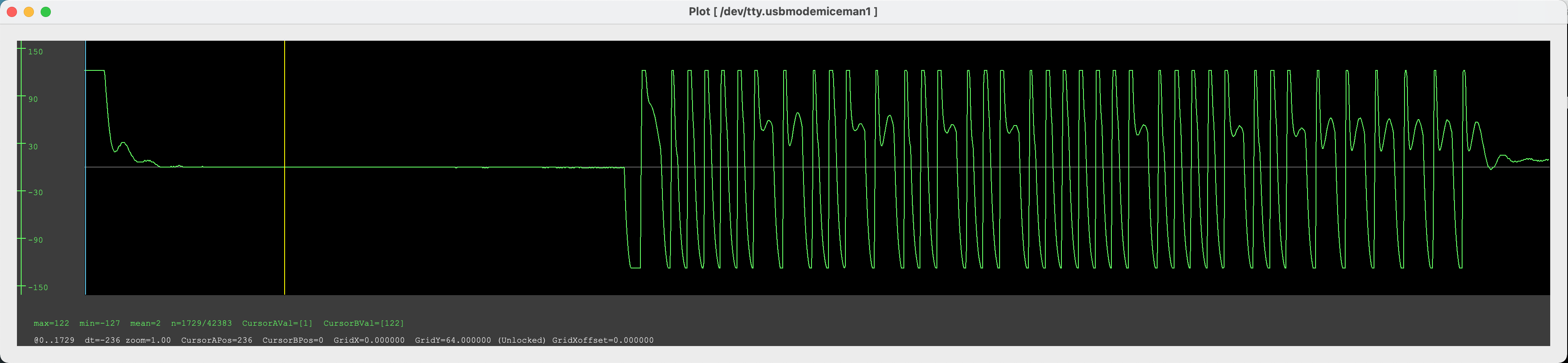

This will setup the Proxmark3 to capture the data coming from the Chinese copier. Read the chip that we want to unlock using the Chinese copier and then “write” it into the Proxmark3 (as of the Proxmark3 is a chip). The Proxmark3 should capture the write attempt and return the prompt, then execute the following two commands and a waveform should appear, we are going to decipher this waveform bit by bit.
[usb] pm3 --> data samples [usb] pm3 --> data plot

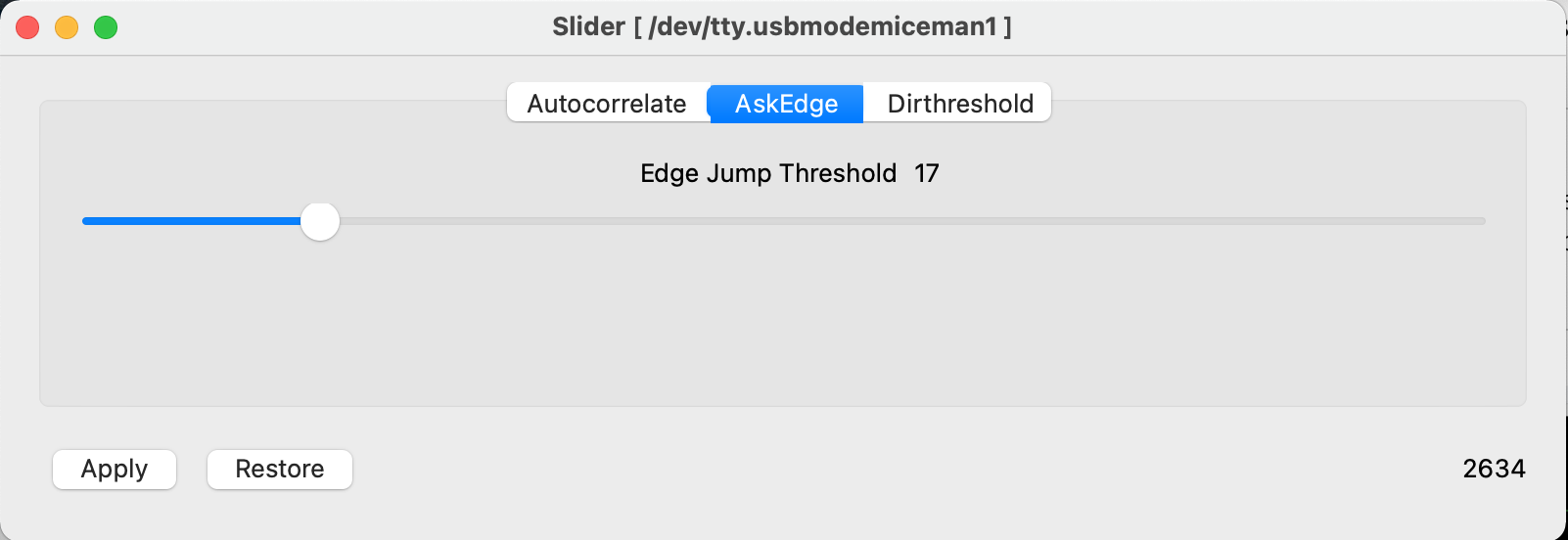

This is the password that the Chinese copier is trying to set, all we have to do is decipher the bits. Apply a filter on the waveform above as shown below to help with visualization.

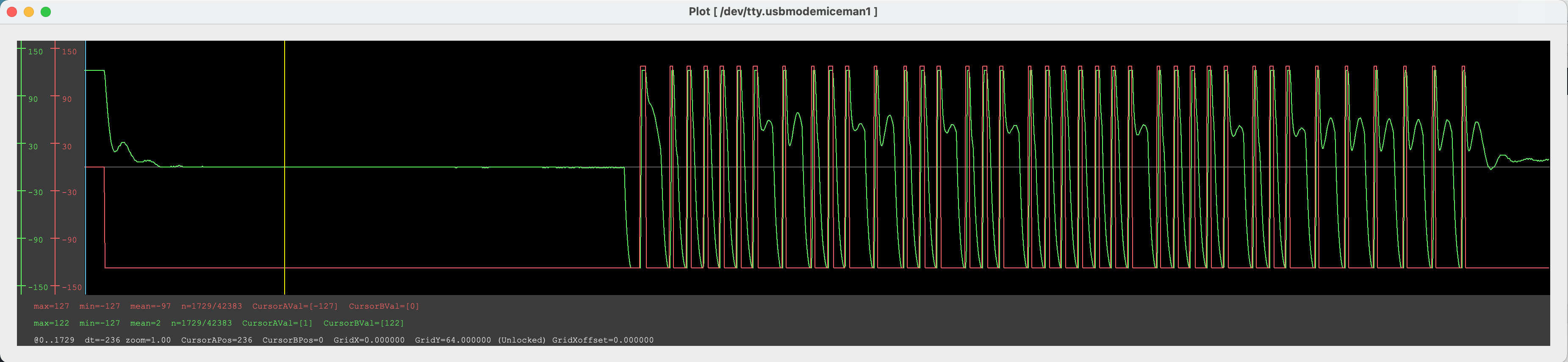

Our waveform should have some red lines over it which make it easier to read now.
Now we just read off the bits off according to the protocol (which I don’t have handy at the moment).

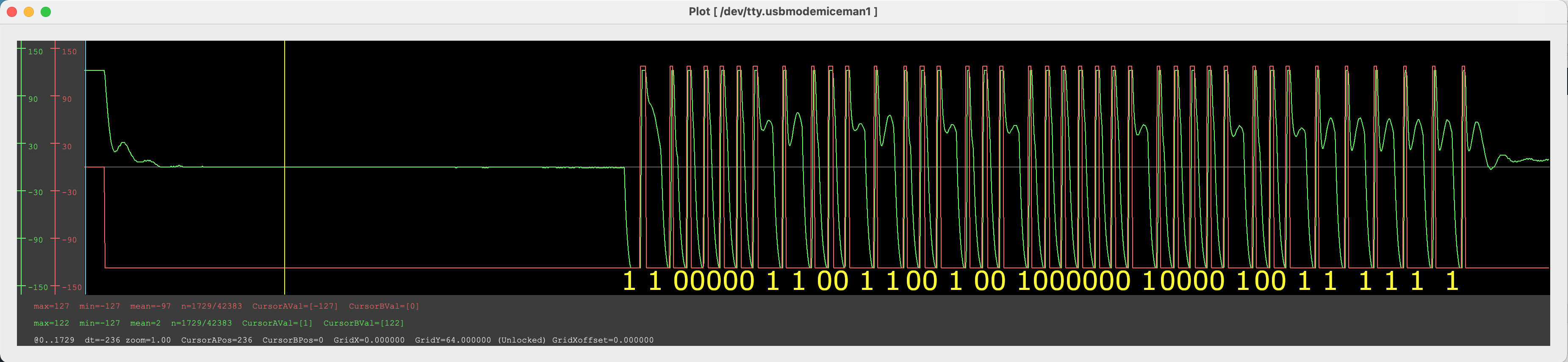

Here is a decode of the bits.
| bits | byte | description |
|---|---|---|
| 1100 | password OP code | |
| 0001 1001 | 0x19 | password byte |
| 1001 0010 | 0x92 | password byte |
| 0000 0100 | 0x04 | password byte |
| 0010 0111 | 0x27 | password byte |
| 111 | trailing bits |
Our password is therefore 0x19920427. Lets try again to dump the chip with the correct password. First run lf search so the Proxmark3 configures for the card, we can also manually configure with lf t55xx config if we know the parameters.
[usb] pm3 --> lf search [=] NOTE: some demods output possible binary [=] if it finds something that looks like a tag [=] False Positives ARE possible [=] [=] Checking for known tags... [=] [+] [H10301] - HID H10301 26-bit; FC: 118 CN: 16038 parity: valid [=] raw: 000000000000002006ec7d4c [+] Valid HID Prox ID found! [+] Chipset detection: T55xx [?] Hint: try `lf t55xx` commands [usb] pm3 --> lf t55 detect -p19920427 [=] Chip Type : T55x7 [=] Modulation : FSK2a [=] Bit Rate : 4 - RF/50 [=] Inverted : Yes [=] Offset : 33 [=] Seq. Term. : No [=] Block0 : 0x00107070 (Auto detect) [=] Downlink Mode : default/fixed bit length [=] Password Set : Yes [=] Password : 19920427
We see the chip, and the password is correct as it responds. We found a T55x7 chip (actually a T5577 chip in in this tag). The chip is in an emulation mode for HID 125khz now so its modulation and such has been changed to match the chip it copied. Let’s attempt to dump its data.
[usb] pm3 --> lf t55xx dump p 19920427 [+] Reading Page 0: [+] blk | hex data | binary | ascii [+] ----+----------+----------------------------------+------- [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [+] Reading Page 1: [+] blk | hex data | binary | ascii [+] ----+----------+----------------------------------+------- [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits. [!] ⚠️ Safety check: Could not detect if PWD bit is set in config block. Exits.
We are getting a safety check to make sure we know what we are doing. Attempting to use a password on a card that does not have one set can damage it hence the warning. We know the password is correct and we can dump the card (at your own risk) since we are going to override this warning.
[usb] pm3 --> lf t55xx dump p 19920427 o [+] Reading Page 0: [+] blk | hex data | binary | ascii [+] ----+----------+----------------------------------+------- [=] Safety check overridden - proceeding despite risk [+] 00 | 00107070 | 00000000000100000111000001110000 | ..pp [+] 01 | EAAACAAA | 11101010101010101100101010101010 | .... [+] 02 | AB4D4D2B | 10101011010011010100110100101011 | .MM+ [+] 03 | 55332D28 | 01010101001100110010110100101000 | U3-( [+] 04 | 00000000 | 00000000000000000000000000000000 | .... [+] 05 | 00000000 | 00000000000000000000000000000000 | .... [+] 06 | 00000000 | 00000000000000000000000000000000 | .... [+] 07 | 19920427 | 00011001100100100000010000100111 | ...' [+] Reading Page 1: [+] blk | hex data | binary | ascii [+] ----+----------+----------------------------------+------- [+] 00 | 00107070 | 00000000000100000111000001110000 | ..pp [+] 01 | E01500D0 | 11100000000101010000000011010000 | .... [+] 02 | 3075F62B | 00110000011101011111011000101011 | 0u.+ [+] 03 | 00A00003 | 00000000101000000000000000000011 | .... [+] saved to json file lf-t55xx-EAAACAAA-AB4D4D2B-55332D28-dump.json [+] saved 12 blocks to text file lf-t55xx-EAAACAAA-AB4D4D2B-55332D28-dump.eml [+] saved 48 bytes to binary file lf-t55xx-EAAACAAA-AB4D4D2B-55332D28-dump.bin
Here is our dump. Next let’s try to erase the card (to clear the password also). There are password set/clear commands, but if you just want to recover card so it can be used on another reader it is easy to just wipe it.
Lets first search for the card, then attempt to erase it, then try to search for it again. If we erased it it should not return any data.
[usb] pm3 --> lf search [=] NOTE: some demods output possible binary [=] if it finds something that looks like a tag [=] False Positives ARE possible [=] [=] Checking for known tags... [=] [+] [H10301] - HID H10301 26-bit; FC: 118 CN: 16038 parity: valid [=] raw: 000000000000002006ec7d4c [+] Valid HID Prox ID found! [+] Chipset detection: T55xx [?] Hint: try `lf t55xx` commands [usb] pm3 --> lf t55xx wipe [=] Target T55x7 tag [=] Default configuration block 000880E0 [=] Begin wiping... [=] Writing page 0 block: 00 data: 0x000880E0 [=] Writing page 0 block: 01 data: 0x00000000 [=] Writing page 0 block: 02 data: 0x00000000 [=] Writing page 0 block: 03 data: 0x00000000 [=] Writing page 0 block: 04 data: 0x00000000 [=] Writing page 0 block: 05 data: 0x00000000 [=] Writing page 0 block: 06 data: 0x00000000 [=] Writing page 0 block: 07 data: 0x00000000 [usb] pm3 --> lf search [=] NOTE: some demods output possible binary [=] if it finds something that looks like a tag [=] False Positives ARE possible [=] [=] Checking for known tags... [=] [+] [H10301] - HID H10301 26-bit; FC: 118 CN: 16038 parity: valid [=] raw: 000000000000002006ec7d4c [+] Valid HID Prox ID found! [+] Chipset detection: T55xx [?] Hint: try `lf t55xx` commands
It appears the wipe command didn’t work, this is because there is a password set, we need the password to change data on the card, let’s try again with the password.
[usb] pm3 --> lf search [=] NOTE: some demods output possible binary [=] if it finds something that looks like a tag [=] False Positives ARE possible [=] [=] Checking for known tags... [=] [+] [H10301] - HID H10301 26-bit; FC: 118 CN: 16038 parity: valid [=] raw: 000000000000002006ec7d4c [+] Valid HID Prox ID found! [+] Chipset detection: T55xx [?] Hint: try `lf t55xx` commands [usb] pm3 --> lf t55xx wipe -p 19920427 [=] Target T55x7 tag [=] Using password 19920427 [=] Default configuration block 000880E0 [=] Begin wiping... [=] Writing page 0 block: 00 data: 0x000880E0 pwd: 0x19920427 [=] Writing page 0 block: 01 data: 0x00000000 [=] Writing page 0 block: 02 data: 0x00000000 [=] Writing page 0 block: 03 data: 0x00000000 [=] Writing page 0 block: 04 data: 0x00000000 [=] Writing page 0 block: 05 data: 0x00000000 [=] Writing page 0 block: 06 data: 0x00000000 [=] Writing page 0 block: 07 data: 0x00000000 [usb] pm3 --> lf search [=] NOTE: some demods output possible binary [=] if it finds something that looks like a tag [=] False Positives ARE possible [=] [=] Checking for known tags... [=] [-] ⛔ No known 125/134 kHz tags found! [+] Chipset detection: T55xx [?] Hint: try `lf t55xx` commands
It looks like we change something on the card. Assuming the card is now wiped, lets try to detect it again then dump its contents (without the password).
[usb] pm3 --> lf t55xx detect [=] Chip Type : T55x7 [=] Modulation : ASK [=] Bit Rate : 2 - RF/32 [=] Inverted : No [=] Offset : 33 [=] Seq. Term. : Yes [=] Block0 : 0x000880E0 (Auto detect) [=] Downlink Mode : default/fixed bit length [=] Password Set : No [usb] pm3 --> lf t55xx dump [+] Reading Page 0: [+] blk | hex data | binary | ascii [+] ----+----------+----------------------------------+------- [+] 00 | 000880E0 | 00000000000010001000000011100000 | .... [+] 01 | 00000000 | 00000000000000000000000000000000 | .... [+] 02 | 00000000 | 00000000000000000000000000000000 | .... [+] 03 | 00000000 | 00000000000000000000000000000000 | .... [+] 04 | 00000000 | 00000000000000000000000000000000 | .... [+] 05 | 00000000 | 00000000000000000000000000000000 | .... [+] 06 | 00000000 | 00000000000000000000000000000000 | .... [+] 07 | 00000000 | 00000000000000000000000000000000 | .... [+] Reading Page 1: [+] blk | hex data | binary | ascii [+] ----+----------+----------------------------------+------- [+] 00 | 000880E0 | 00000000000010001000000011100000 | .... [+] 01 | E01500D0 | 11100000000101010000000011010000 | .... [+] 02 | 3075F62B | 00110000011101011111011000101011 | 0u.+ [+] 03 | 00A00003 | 00000000101000000000000000000011 | .... [+] saved to json file lf-t55xx-dump.json [+] saved 12 blocks to text file lf-t55xx-dump.eml [+] saved 48 bytes to binary file lf-t55xx-dump.bin
Looks like the card is now blank (without a password) so we are free to use it as we please. Notice the modulation is also now default, hence why we needed to run detect first before the dump so the Proxmark3 knows which modulation to use. These programmable chips (like the T55x7 or EM4x05 series chips) are special in a way in that they can emulate a number of modulations depending on which card it is emulating. Not all chips can be programmed or reprogrammed.
One other method I would like to discuss is a slightly faster method that can be tried to recover the password. This method only worked because we have the device that set the password in our hands and we could examine the password it is sending with the Proxmark3. The Promark3 can also brute force the password which can take a while, however, a lot of these Chinese copier’s passwords are well known and common so the Proxmark3 has a script that will try all the common known passwords. Here is how that works below, it so happens this Chinese copier uses one of the well known passwords.
I again copied the card with the Chinese copier, then tried the brute force method below.
[usb] pm3 --> lf search [=] NOTE: some demods output possible binary [=] if it finds something that looks like a tag [=] False Positives ARE possible [=] [=] Checking for known tags... [=] [+] [H10301] - HID H10301 26-bit; FC: 118 CN: 16038 parity: valid [=] raw: 000000000000002006ec7d4c [+] Valid HID Prox ID found! [+] Chipset detection: T55xx [?] Hint: try `lf t55xx` commands [usb] pm3 --> lf t55xx chk [=] press 'enter' to cancel the command [+] loaded 112 keys from dictionary file /Users/user/Documents/dev_proxmark3/repo/proxmark3/client/dictionaries/t55xx_default_pwds.dic [=] press 'enter' to cancel the command [=] testing 51243648 [=] testing 000D8787 [=] testing 19920427 [=] Chip Type : T55x7 [=] Modulation : FSK2a [=] Bit Rate : 4 - RF/50 [=] Inverted : Yes [=] Offset : 33 [=] Seq. Term. : No [=] Block0 : 0x00107070 (Auto detect) [=] Downlink Mode : default/fixed bit length [=] Password Set : Yes [=] Password : 19920427 [+] found valid password: [ 19920427 ] [+] time in check pwd 1 seconds
We were able to find the password easily with just trying common passwords with the “lf t55xx chk” command. Since we know the password we can go ahead and dump or wipe the card as shown above.
Hope this has been helpful to recover passwords set from an RFID copier.
